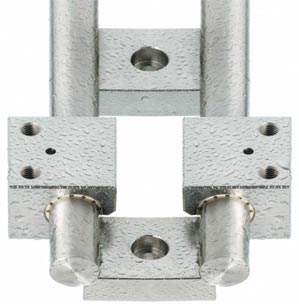

DryLin® W stainless steel guide 316 - double, Ø 10 mm




W rail, double, Ø 0.39 inch (10 mm)

Part No.:
da [mm]:
Order no. Suitable Weight da L a b h h2
  pillow block   h9 max. -0.3
  [Order. No.] [kg/m] [mm] [mm] [mm] [mm] [mm] [mm]
 WS-10-40-ES-FG WJUM-01-10-ES-FG 1.58 10 3000 40 40 0.22 9
More about selected part:
3D-CAD Sample request Experts PDF Quote request Price list myCatalog
Order no. C4 C5 C5 C6 C6 K1 for Price / m
    Min. max. Min. max. Screw
  [mm] [mm] [mm] [mm] [mm] DIN 912
 WS-10-40-ES-FG 120 20 79.5 20 79.5 M6 Upon request
More about selected part:
3D-CAD Sample request Experts PDF Quote request Price list myCatalog

W pillow block

Part No.:
B [mm]:
DryLin® W housing bearing
Order no. Weight H B C1 C3 A A2 K2 K3 Static load capacity
    ±0.07             Flat head Coy Coz+ Coz-
  [g] [mm] [mm] [mm] [mm] [mm] [mm] [mm] Screw [N] [N] [N]
 WJUM-01-10-ES-FG 57 18 26 29 16 73 60 M6 M5 3800 3800 950
 WTUM-01-10-ES-FG (1) 57 18 26 29 16 73 60 M6 M5 3800 3800 950
More about selected part:
3D-CAD Sample request Experts PDF Quote request Price list myCatalog
(1) The specified lenght exceeds the maximum permissible lenght of the article.
